Easy Works
Easy Works is an add-on module to Easy Man. The map database from Easy Man is used as input, so the configuration is minimal. Information is collected regularly from all your switches, routers, servers etc.
The data is saved into searchable reports. You get a layer 2 documentation, have full control of all VLANs, MAC/IP-addresses, installed software, disk usage etc.
Backup is taken of your switches config, and traffic statistics is saved on all ports in your network.
Easy Works uses the same Achitecture as Easy Man with Server Components, Poller Components and Local and Remote Consoles.
Key Product Features:
|
1. |
Neigbor Discovery - uses CDP and LLDP. |
|
2. |
Trunk/Access Ports - information and traffic statistics on ALL ports. |
|
3. |
MAC/IP Address Search - locate the switch/port for a specific address. |
|
4. |
Server - CPU, Disk, Memory, Running applications (CPU and Memory). Installed applications (latest patches etc.) |
|
5. |
Incident Information - send information to Easy Man about device failures/user actions. |
|
6. |
Reports - scheduled reports created every 24 hours for all devices in the map. Shows switch-switch connections, VLAN deployment, software releases, traffic statistics for ALL ports in the network etc. |
|
7. |
Monitor - disk space and running processes. |
|
8. |
Maintenance - schedule device maintenance. |
|
9. |
Config Backup - backup of config on all Cisco/Hp/3Com/D-Link devices. |
|
10. |
Web Interface - Web Reports and 45 days history of all traffic data. |
Report Limits Enterprise/Workgroup:
|
Report Type |
Workgroup |
Enterprise |
|
System Devices |
50 |
4000 |
|
Neighbor Ports |
100 |
Unlimited |
|
Trunk/Access Ports |
1500 |
Unlimited |
|
Disk Information |
25 |
Unlimited |
|
Running Software |
1000 |
Unlimited |
|
Installed Software |
1000 |
Unlimited |
|
User MAC/IP Addresses |
500 |
Unlimited |
System Requirements:
2 GHz, 8 GB RAM, Windows Server 2019/2022, Windows 10/11
Screen Shots
Figure 1. Switch - All 1 Gbit Connections

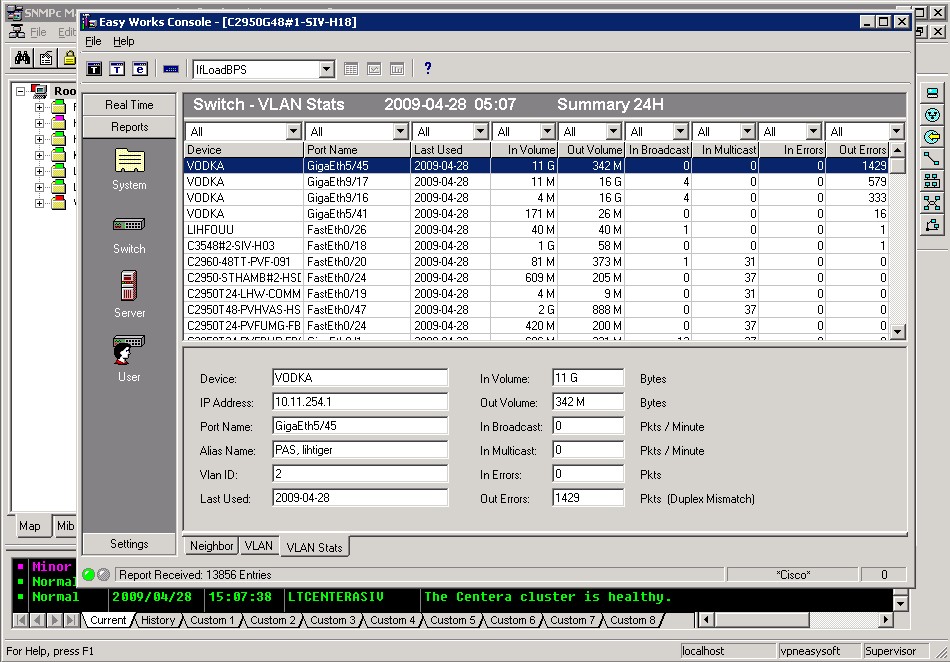

Figure 2. Switch - VLAN Stats for All User Ports.

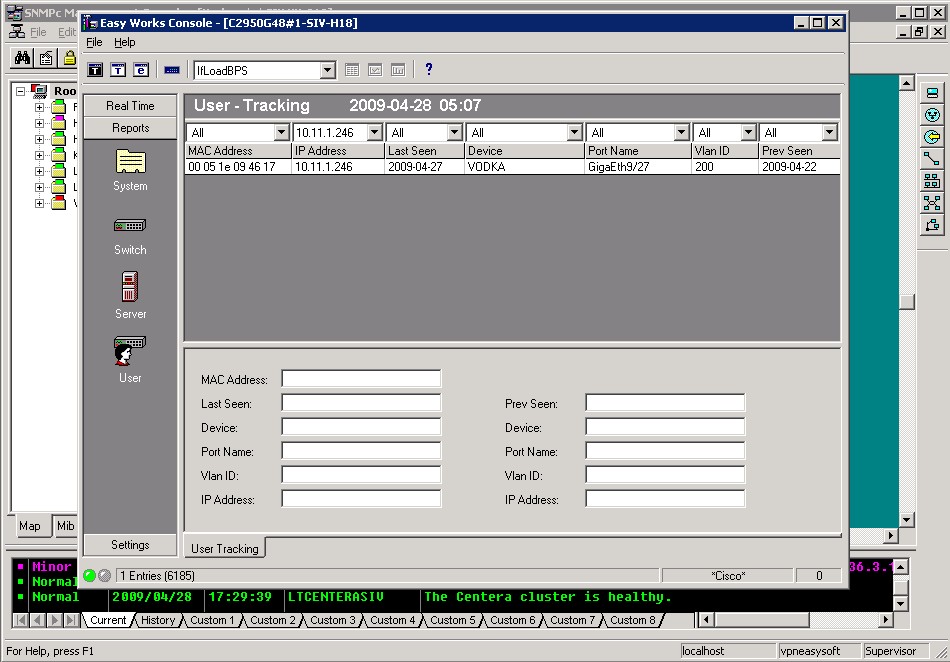

Figure 3. Switch - User Tracking

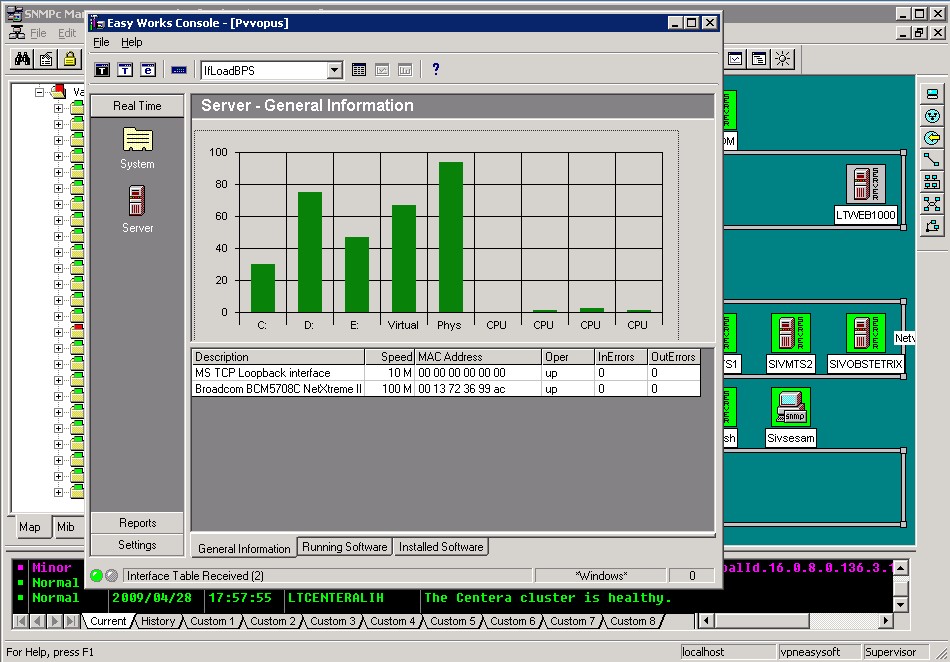

Figure 4. Server - Disk, CPU, Memory and Interfaces

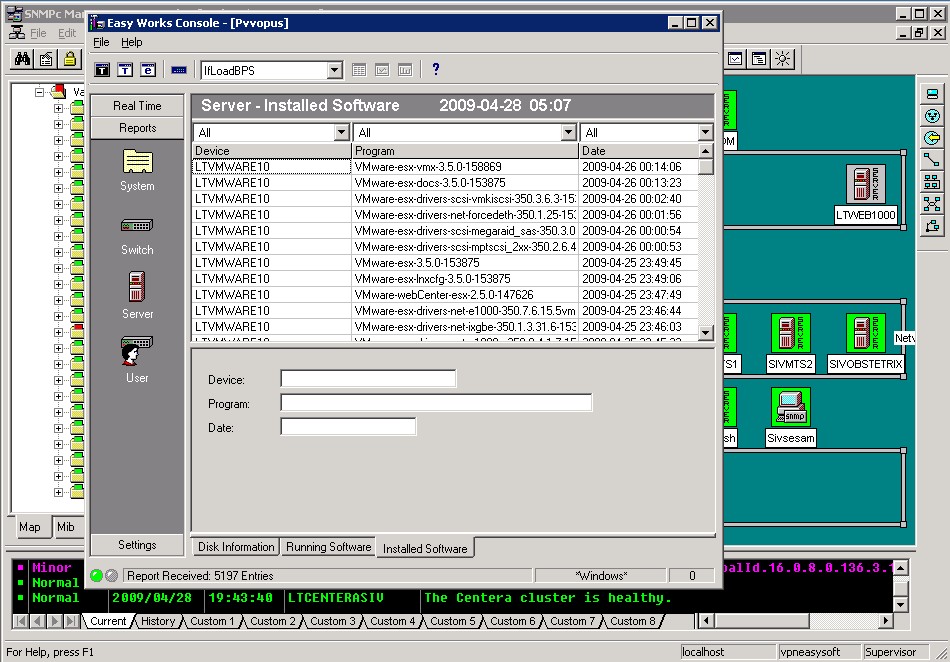

Figure 5. Server - All Installed Software

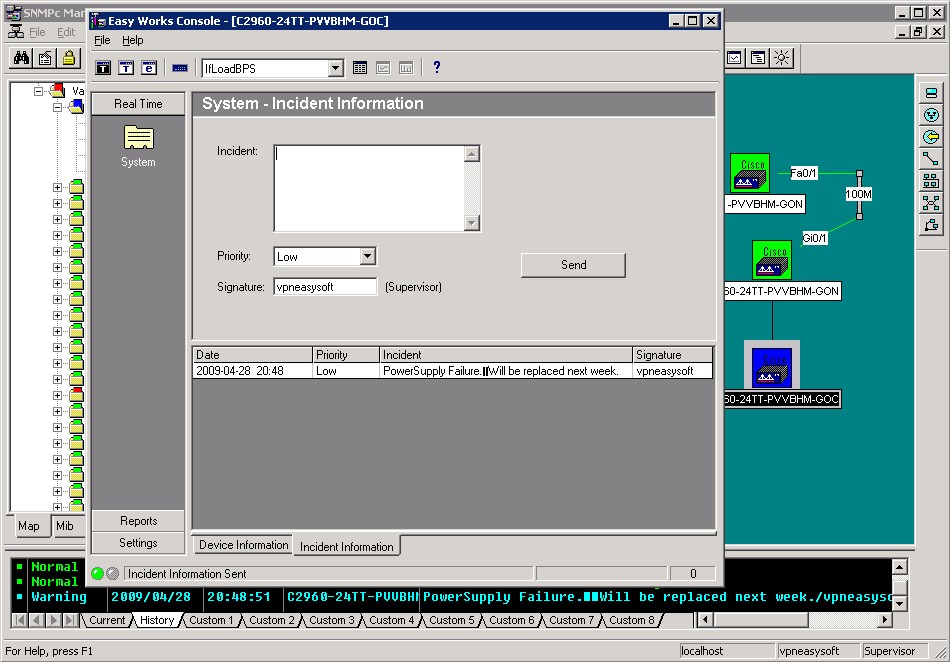

Figure 6. Incident Information
